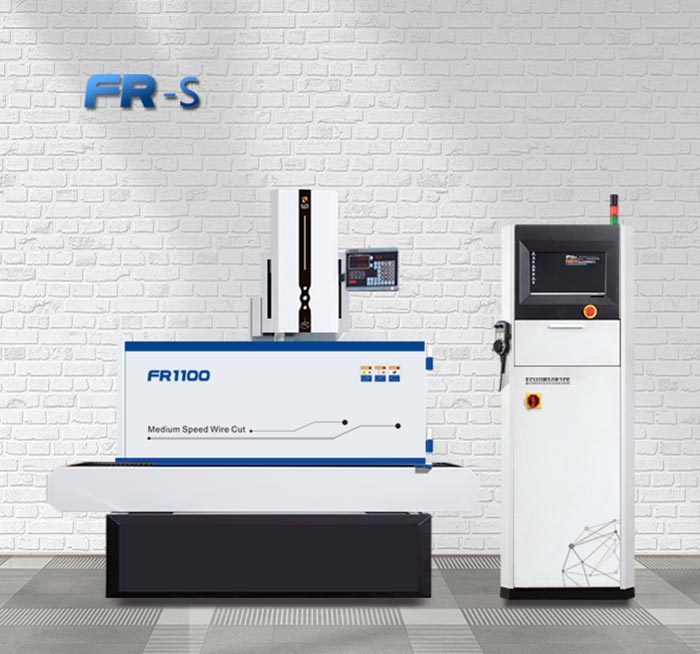

• FR-S (Servo Closed Loop Model)

FR-S (Servo Closed Loop Model)


Machine BodyFR-400/SFR-500/SFR-600/SFR-700/SFR-850/MSFR-1100/MS
Table travel (X*Y*Z)(mm)300*400*250350*500*250400*600*300450*700*300600^850*500800*11100*500
Table size (W*L*)(mm)550*680580*770680*940720*1040850*1250111100*1500
Max work-piece weight350kg400kg500kg600kg1500kg2000kg
Max cutting taper/angle±6°/80mm(+12°/80mm)     +12°/80mm
Wire diameter0.16-0.20mm
Precis ion (3 times cutting)+0.005mm

Repetitive positioning precision


Surface finishing

Power capacity3KVA
Machine weight≈1500kg≈1700kg≈2000kg≈2300kg≈5300kg≈6500kg
Water tank size(W*L*H)(mm)700*1000*470750M 200*470
Water tank capacity≈200L≈220L

Filtration type

Double pump lirtration
Working solutionWork solution+Pure water


1.The handheld unit developed independently is convenient for customer to use (only servo type)

2.High-efficiency and low-loss environmental control system,greatly improve the efficiency, reduce power dissipation.

3.Table Moving Part: X/Y axis adopts three-tier worktable struction guarantees the high cutting accuracy and make sure the table moving smoothly.

4.Multifunction work-piece fixture.

5.Z axis electric lifting.

6.X,Y axis digital read out(DRO)

7.Multiple filtration water tank.

8.Excellent Software with both design and operating function,multi-cutting makes the surface finishing close to brass wed m. Controller can accept & transfer different drawing format, easy to operate, greatly improve the work efficiency.

9.Intelligent database : Not necessary to input the cutting parameters manually, control system works out perfect parameters immediately after inputting job thickness, wire diameter and cutting times.The problem of different job accuracy caused by workers with different experiences wit! be solved.

10.X/Y axis drived by AC servo motors,after correcting by laser interferometer,improve the displacement accuracy and speed, (only servo type)

11.Wire Tension System : Adopts double direction wire tension system, keep the wire tension with same strength during the working time, which can protect the wire and reduce the wire broken possibility.

Wire Swing system:The first company in Chinese market that adopts linear guide way,make the swing drum

12.Moves smoothly without any unnecessary abrasion, a void many problems such as big abrasion, wire breaking,wire loosing etc caused by V-shape guide way.

13.Central lubrication system for the whole machine.

14.Taper/angle part:Well-designed high strenth taper device,ensures the displacement accuracy for moving and taper cutting
